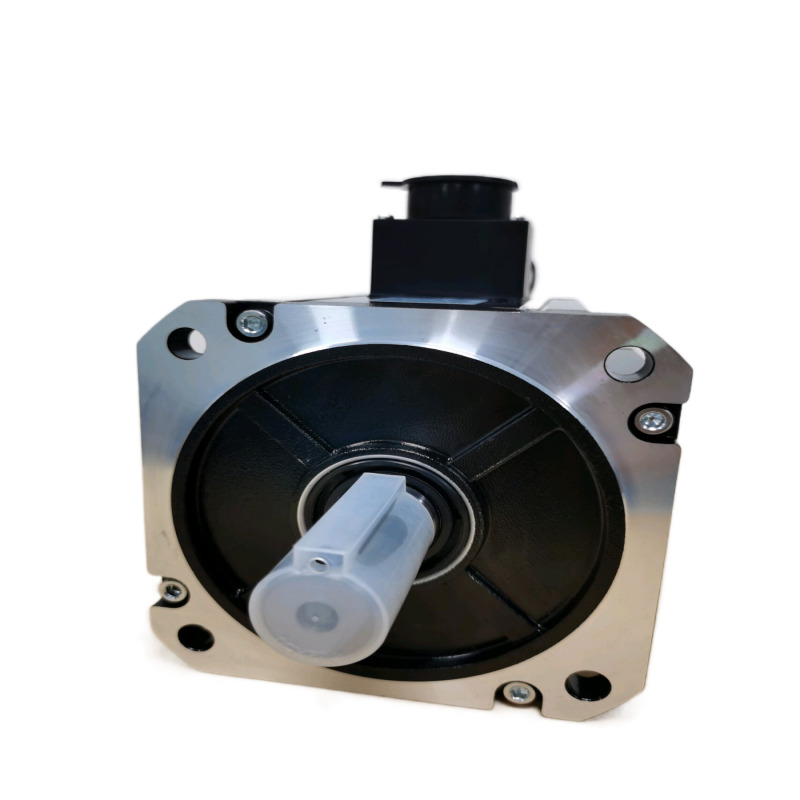

Name: AC 1000W Easy Driver And Servo Motor 1 KW 130WF-04820C-9
Brand: AC 1000W Easy Driver And Servo Motor 1 KW 130WF-04820C-9
SKU: 130WF-04820C(S)-9
Rating: 4.7 (101 reviews)

Features Gallery Product Description Request A Quote

Features

Specifications

Warranty: 3months-1year

Model Number: 130WF-04820C(S)-9

Rated Power (W): 750

Rated Voltage (V): 220

Rated Curent (A): 3.8

Rated Torque (N.m): 2.4

Rated Speed (r/min): 3000

Peak Current (A): 11.4

Peak Torque (N.m): 7.2

Peak Speed (r/min): 6000

Voltage Constant (v/1000r/min): 38.5

Torque Coefcient (N.m/A): 0.6

Basic Infomation

Model Number: 130WF-04820C(S)-9

Payment & Shipping Terms

Packaging Details: 4 pcs in a box

Supply Ability: 10000 Piece/Pieces per Month

Product Description

Model	60WB-M01330C(S)	80WB-02430C(S)	130WF-04820C(S)	130WF-07220C(S)	130WF-09620C(S)
Rated Power (W)	400	750	1000	1500	2000
Rated Voltage (V)	220	220	220	220	220
Rated Curent (A)	2.8	3.8	5.5	8	9.8
Rated Torque (N.m)	1.27	2.4	4.77	7.16	9.55
Rated Speed (r/min)	3000	3000	2000	2000	2000
Peak Current (A)	8.4	11.4	11.6	16	20.4
Peak Torque (N.m)	3.81	7.2	9.54	14.32	19.1
Peak Speed (r/min)	5000	6000	3000	3000	3000
Voltage Constant (v/1000r/min)	31.4	38.5	53	58	60
Torque Coefcient (N.m/A)	0.45	0.6	0.82	0.9	0.93
Line-line Resistance (Ω)	3.6	1.33	0.85	0.65	0.58
Line-line Inductance (mH)	4	5.6	12.5	9.5	7.5
Electrical Time-constant (ms)	1.1	4.2	14.7	14.6	12.9
Weight(kg)	1.3	2.5	5.4	7.1	8.3
Number of pole pairs	5Pairs of poles
Insulation Class	Class F
Safety Class	IP65
Environment	Ambient temperature:-20℃~-40℃;Ambient humidity≤90%(no frost condition)

Gend inquiry to us

Contact with us :

WhatsApp/ WeChat:+86 15013708081
